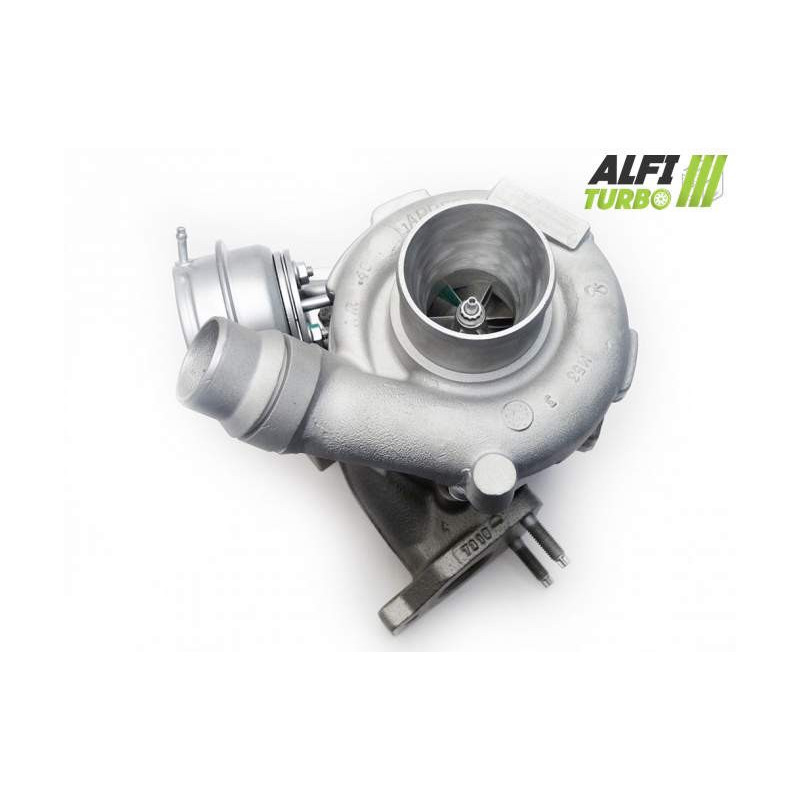

Turbo Renault Scenic 2 2.0 DCi 150 hp, 765015, 759171, 8200473786A, 8200473786B, 8200473786C, 8200583885, 8200695785

  • Online only
  • Included Gasket Kit
New
Turbo Renault Scenic 2 2.0 DCi 150 hp, 765015, 759171, 8200473786A, 8200473786B,  8200473786C, 8200583885, 8200695785
  • Turbo Renault Scenic 2 2.0 DCi 150 hp, 765015, 759171, 8200473786A, 8200473786B,  8200473786C, 8200583885, 8200695785
AG17-015
Year: September 2005 to November 2008
Power: 150 hp
displacement: 1995 cm³
Engine code: JM1K
Warranty: 2 years

Included Gasket Kit

€206.40 VAT included

172 tax excl.

Quantity
Delivery within 24-72 hours (order before 5 p.m.)

Description

This turbocharger is designed specifically for Renault Scenic II 2.0 dCi 150 hp, as well as various engine options Renault 2.0 dCi 1,995 cm³, corresponding to the model codes listed below.

The documented assignments cover several versions of Scenic, Grand Scenic, , Espace, Koleos, Laguna, Latitude, Mégane and Vel Satis. The benchmark for turbochargers dThe origin must be verified before any order is placed.

Turbo part numbers

OEM part numbers

8.200.473.786A
8.200.473.786B
8.200.473.786C
8.200.583.885
8.200.695.785
8.200.741.528
8.200.741.529A
8.201.051.043A
8200473786A
8200473786B
8200473786C
8200583885
8200695785
8200741528
8200741529A

Manufacturer’s part numbers

759171
759171-0001
759171-0002
759171-0003
765015
765015-0001
765015-0002
765015-0003
765015-0004
765015-0005

Compatible vehicles and assignments

Renault
Espace IV MPV — 2.0 dCi 131 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to an unspecified date
Vehicle codes/types: JK02, JK03
Espace IV MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to an unspecified date
Vehicle codes/types: JK01, JK02, JK1J, JK1K, JK1H
Espace IV MPV — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to an unspecified date
Vehicle codes/types: JK03, JK04, JK1C, JK1G, JK1J, JK1K
Large Scenic MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2005 to November 2008
Vehicle code/type: JM1K
Large SCÉNIC III MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — February 2009 to an unspecified date
Vehicle code/type: JZ0Y
Large SCÉNIC III MPV — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: JZ0L
Koleos Off-Road — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to an unspecified date
Vehicle code/type: HY0K
Koleos Off-Road — 2.0 dCi 4x4 150 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to an unspecified date
Vehicle code/type: HY0K
Koleos Off-Road — 2.0 dCi 4x4 173 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to an unspecified date
Vehicle code/type: HY0B
Laguna II Estate — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — August 2005 to August 2006
Vehicle code/type: KG1T
Laguna II Estate — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to Dec 2007
Vehicle code/type: KG1S
Laguna II Hatchback — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — August 2005 to August 2006
Vehicle code/type: BG1T
Laguna II Hatchback — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to Aug 2007
Vehicle codes/types: BG14, BG1S
Laguna III Coupé — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to December 2015
Vehicle codes/types: DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M…
Laguna III Coupé — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to December 2015
Vehicle codes/types: DT0M, DT0N, DT0S, DT19, DT1F
Laguna III Coupé — 2.0 dCi WG 178 hp
1995 cm³, Diesel, 4-cylinder — September 2008 to December 2015
Vehicle codes/types: DT11, DT1E, DT1N
Laguna III Estate — 2.0 dCi 131 hp
1995 cm³, Diesel, 4-cylinder — Oct 2007 to Dec 2015
Vehicle codes/types: KT07, KT0J, KT14, KT1A, KT1S
Laguna III Estate — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — Oct 2007 to Dec 2015
Vehicle codes/types: KT01, KT08, KT09, KT0K, KT12, KT1D, KT1W
Laguna III Estate — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2008 to Dec 2015
Vehicle codes/types: KT0M, KT0N, KT0S, KT19, KT1F
Laguna III Estate — 2.0 dCi WG 178 hp
1995 cm³, Diesel, 4-cylinder — March 2008 to December 2015
Vehicle codes/types: KT11, KT1E, KT1N
Laguna III Hatchback — 2.0 dCi 131 hp
1995 cm³, Diesel, 4-cylinder — Oct 2007 to Dec 2015
Vehicle codes/types: BT07, BT0J, BT14, BT1A, BT1S
Laguna III Hatchback — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — Oct 2007 to Dec 2015
Vehicle codes/types: BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D…
Laguna III Hatchback — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2008 to Dec 2015
Vehicle codes/types: BT0M, BT0N, BT0S, BT19, BT1F
Laguna III Hatchback — 2.0 dCi WG 178 hp
1995 cm³, Diesel, 4-cylinder — March 2008 to December 2015
Vehicle codes/types: BT11, BT1E, BT1N
Latitude Saloon — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — February 2011 to an unspecified date
Vehicle code/type: L70H
Latitude Saloon — 2.0 dCi 175, documented power 173 hp
1995 cm³, Diesel, 4-cylinder — May 2011 to an unspecified date
Vehicle code/type: L70Y
Megane CC Convertible — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — June 2010 to an unspecified date
Vehicle code/type: EZ0L
Megane II Convertible — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2005 to March 2009
Engine code/type: not specified
Megane II Estate — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2005 to July 2009
Engine code/type: not specified
Megane II Hatchback — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2005 to February 2008
Vehicle codes/types: BM1K, CM1K
Megane II Hatchback — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2007 to Feb 2008
Engine code/type: not specified
Megane III Coupé — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: DZ0Y
Megane III Coupé — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: DZ0L
Megane III Coupé — 2.0 dCi 163 hp
1995 cm³, Diesel, 4-cylinder — July 2012 to an unspecified date
Engine code/type: not specified
Megane III Grandtour Estate — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — October 2010 to an unspecified date
Vehicle code/type: KZ0Y
Megane III Grandtour Estate — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: KZ0L
Megane III Grandtour Estate — 2.0 dCi 163 hp
1995 cm³, Diesel, 4-cylinder — July 2012 to an unspecified date
Engine code/type: not specified
Megane III Hatchback — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — October 2010 to an unspecified date
Vehicle code/type: BZ0Y
Megane III Hatchback — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: BZ0L
Megane III Hatchback — 2.0 dCi 163 hp
1995 cm³, Diesel, 4-cylinder — July 2012 to an unspecified date
Engine code/type: not specified
Scenic II MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — September 2005 to November 2008
Vehicle code/type: JM1K
SCÉNIC III MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — February 2009 to an unspecified date
Vehicle codes/types: JZ0Y, JZ26
SCÉNIC III MPV — 2.0 dCi 160 hp
1995 cm³, Diesel, 4-cylinder — April 2009 to an unspecified date
Vehicle code/type: JZ0L
VEL SATIS MPV — 2.0 dCi 150 hp
1995 cm³, Diesel, 4-cylinder — August 2005 to an unspecified date
Vehicle code/type: BJ03
VEL SATIS MPV — 2.0 dCi 173 hp
1995 cm³, Diesel, 4-cylinder — Jan 2006 to an unspecified date
Vehicle codes/types: BJ03, BJ0B

Technical specifications

Product type: Turbo
Engine: 2.0 dCi
displacement : 1,995 cm³
Fuel: Diesel
Number of cylinders: 4
Documented power ratings: 131 to 178 hp depending on the purpose

Assembly instructions

⚠️ WARNING — IMPORTANT BEFORE ASSEMBLY

Before installation, identify and rectify the cause of the previous fault. Check the lubrication circuit, the supply and the return d’oil, as well as the cleanliness of the pipes and the intake, and the absence of foreign objects.

Carry out the priming in accordance with the relevant guidelines and follow the manufacturer’s instructions. If a lubrication fault is not rectified, it may lead to the turbocharger failing again.

How do you choose the right turbo ?

Check the turbo part number d’origin, OEM and manufacturer part numbers, as well as the model, generation, body style, engine type, power output, production period and engine code or vehicle type. The same engine can be fitted with several different turbo set-ups.

⚠️ Check your turbo’s part numbers
Before placing your order, Compare the part number on your turbocharger d’origin’ using the references given in this fact sheet. Having the same motor does not always guarantee compatibility.
If you’re unsure, please contact us with the reference number shown on your turbo.
Product Details
AG17-015
3701803903617
New
