Hybrid Turbo 1.5 dCi 103 and 109 hp – 54399700080, 54399700066

  • Online only
Hybrid

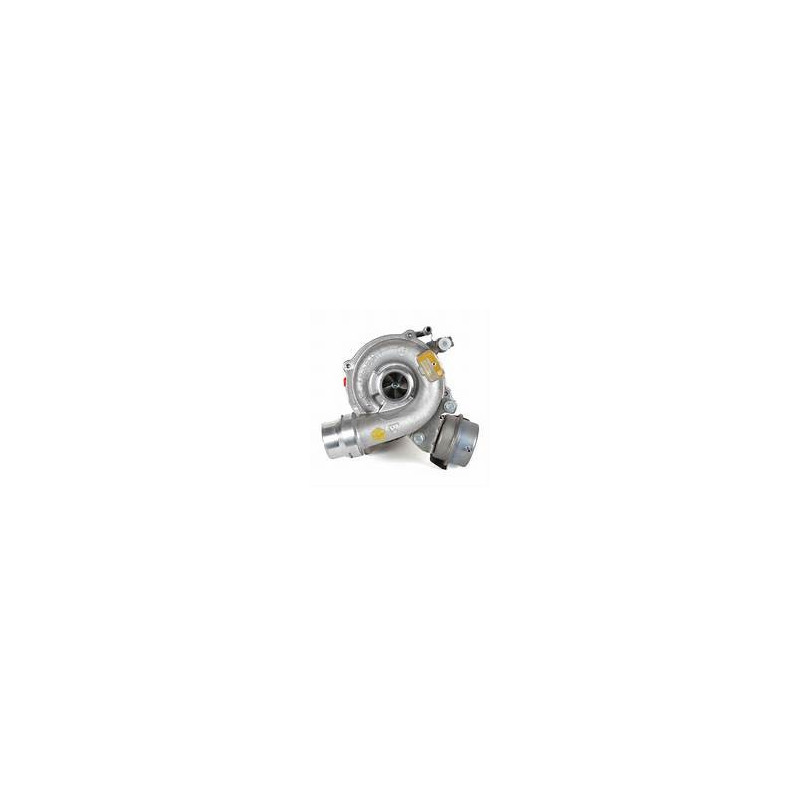

Hybrid Turbo 1.5 dci 103 109 54399700066, 54399700080, 54399880066
  • Hybrid Turbo 1.5 dci 103 109 54399700066, 54399700080, 54399880066
  • Hybrid Turbo 1.5 dci 103 109 54399700066, 54399700080, 54399880066
  • Hybrid Turbo 1.5 dci 103 109 54399700066, 54399700080, 54399880066
54399700080
Year: Not specified
Power: 103 and 109 hp
displacement: 1.5 dCi
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€451.49 VAT included

376.24125 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo, designed for 1.5 dCi engines with 103 and 109 hp, is based on a plug & play configuration, designed for for an external Installation without modification. Depending on the stage selected, its set-up combines a high-flow MFS compressor wheel, a 360° thrust bearing and appropriate internal modifications.

Three levels of tuning are documented at.. The choice must take into account the engine configuration, the intended use and the necessary peripheral modifications.

Available set-ups — Stage 1, Stage 2 and Stage 3

Stage 1
Compressor impeller: MFS high-flow
Thrustbearing: 360°
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

This modification primarily affects the compressor section. The high-flow MFS impeller is designed to adjust the compression capacity and air displacement d, whilst the 360° thrust bearing distributes the axial forces.

Stage 2
Compressor impeller: high-flow MFS oversized
d intake housing: re-profiled for accommodate the new impeller
Thrustbearing: 360°
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor impeller with a d intake housing, re-profiled. This configuration may alter the air flow rate d and the compressor’s performance; its operation depends on the associated engine tuning.

Stage 3
Compressor impeller: MFS high-flow oversized
Intake housing d: re-profiled for to accommodate the new impeller
Thrustbearing: 360°
Turbine impeller: high flow oversized
Turbine casing: re-profiled for ly to accommodate the new impeller
Balancing: high-speed at 150,000 rpm on a Cimat VSR test bench

Stage 3 includes modifications to both the compressor and turbine sides. The sizing of the impellers and the re-profiling of the housings affect both flow rate and response time; this upgrade is therefore not automatically the most suitable for all configurations.

What is a hybrid turbo?

A hybrid turbo retains a turbocharger architecture designed for accommodate modified internal components. Depending on the upgrade stage, the modifications may involve the compressor wheel, the turbine wheel, the housings, the thrust bearing and the rotor balancing.

The aim is d to adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: the geometry of the wheels and their combination with the housings are crucial.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in airflow d'air. A standard MFS wheel may retain a geometry close to the original.

An MFS impeller Performance may feature a geometry tailored to the modification, particularly in terms of its profile or dimensions. A standard MFS impeller can be just as polished as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d air.

Why does the geometry of the blades influence the airflow d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and blade arrangement all influence its aerodynamic behaviour. The result also depends on the casings, the turbine, the boost pressure and the engine mapping. A larger impeller does not automatically guarantee better performance and may alter the response time.

Reliability and balancing of the hybrid turbo

The 360° stop, documented across the three stages, helps to distribute axial forces. The rotor benefits from d'high-speed balancing at 150,000 rpm on a Cimat VSR test bench to limit vibrations and mechanical stresses. This balancing does not compensate for a lack of lubrication or incorrect installation.

Engine remapping and preparation

Operating d'a hybrid turbo may require adjustments to the mapping, boost pressure and wastegate settings. Depending on the level of tuning, the fuel injection, exhaust system, cooling system, the clutch or the transmission may also need to be checked and, if necessary, adjusted. Fitting the turbo alone does not guarantee a power increase.

Turbo part numbers

OEM part numbers

8200588232
7711368842
8200846770
7701478979
7701477404
8200552213

Manufacturer’s part numbers

54399980066
54399880080
54399980080
54399700066
54399700080
54399880066

Compatible vehicles and roles

Engine variants 1.5 dCi
Version: 103 and 109 hp
Period: not specified
Engine code : not specified

No detailed list of makes and models is available. Compatibility must be confirmed using the part number of the original turbo d.

Additional technical specifications

Product type: Hybrid Turbo
Engine: 1.5 dCi
Power: 103 and 109 hp
Installation: configuration plug & play, no external modifications required

Installation advice

⚠️ CAUTION — IMPORTANT BEFORE INSTALLATION

Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d. Check that the pipes are clean, the inlet and that there are no foreign objects present. Carry out priming in accordance with the applicable recommendations and follow the manufacturer’s instructions. A lubrication fault that is not rectified may lead to the turbocharger failing again.

How do you identify the correct turbo?

Check the part number marked on the turbo d the original, OEM and manufacturer part numbers, as well as the make, model, generation, body style, engine type, power output,Year and engine code. An identical engine type is not always sufficient to confirm compatibility.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If in doubt, please contact us with the full part number from your turbocharger.
