Hybrid Turbo Hyundai 2 5 80 – 282004B160, 700273. D hp

  • Online only
Hybrid

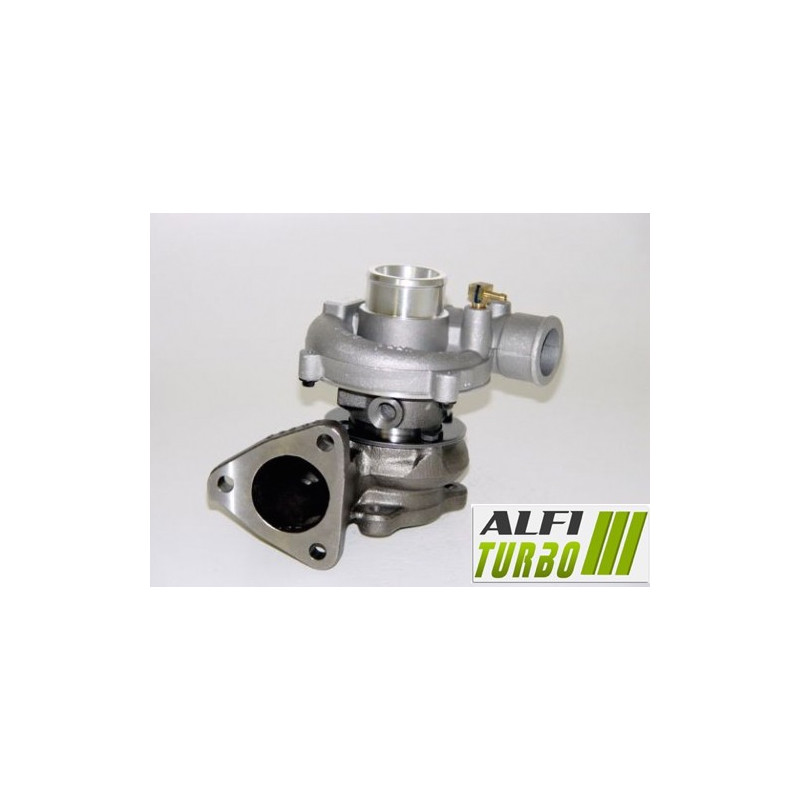

Hybrid Turbo 2.5D 80 28200-4B160 282004B160 28200-4B151 282004B151 700273-0001 700273-0002 700273-1 700273-2
  • Hybrid Turbo 2.5D 80 28200-4B160 282004B160 28200-4B151 282004B151 700273-0001 700273-0002 700273-1 700273-2
  • Hybrid Turbo 2.5D 80 28200-4B160 282004B160 28200-4B151 282004B151 700273-0001 700273-0002 700273-1 700273-2
  • Hybrid Turbo 2.5D 80 28200-4B160 282004B160 28200-4B151 282004B151 700273-0001 700273-0002 700273-1 700273-2
700273
Year: From 1995
Power: 77 to 80 hp
displacement: 2.5 l
Engine code: Not specified
Gasket kit
Preparation course
Exchange
€390.60 VAT included

325.5 tax excl.

Quantity
Manufacturing time: 15-20 working days

Description

This hybrid turbo for, designed for the Hyundai 2.5 D and 2.5 TD engines, is based on an internal modification designed to adapt the air flow d. Depending on the upgrade package chosen, it is fitted with a high-flow MFS compressor wheel, reprofiled housings and, for the most comprehensive upgrade package, a turbine wheel oversized.

It corresponds to part numbers 700273 and 28200-4B160 and covers several applications Hyundai BUS, H100, Starex and VAN LIGHT DUTY documented between 77 and 80 hp.

Available configurations — Stage 1, Stage 2 and Stage 3

Stage 1

Compressor wheel: MFS high-flow
Thrust bearing system: 360° thrust bearing
Balancing: High-speed at 150,000 rpm on a Cimat VSR bench

This configuration retains the Installation without modification whilst incorporating an MFS compressor wheel designed for increase the compressor’s flow capacity.

Stage 2

Compressor impeller: MFS high-flow oversized
d’ intake housing: Reprofiled for accommodate the new impeller oversized
Thrust bearing system: 360° thrust bearing
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

The Stage 2 combines a oversized compressor impeller with a reprofiled dintake casing. This modification is designed to alter the compression capacity and air flow rate d, with performance depending on the engine configuration.

Stage 3

Compressor impeller: MFS high-flow oversized
dintake housing: Reprofiled for to accommodate the new impeller oversized
Thrust bearing system: 360° thrust bearing
Turbine impeller: High-flow oversized
Turbine casing: Reprofiled for ly to accommodate the new impeller oversized
Balancing: High-speed balancing at 150,000 rpm on a Cimat VSR test bench

Stage 3 is fitted on both the compressor and turbine sides. The re-profiling of both casings allows for the installation of the oversized impellers documented at. This configuration requires consistent preparation of the entire engine assembly.

What is a hybrid turbo?

A hybrid turbo utilises a turbocharger architecture adapted for to accommodate modified internal components. Depending on the upgrade stage, the preparation may involve the compressor impeller, the housings, the turbine impeller, the thrust bearing system and balancing.

The aim is dto adapt the compression capacity and air flow rate d. However, a hybrid turbo is not defined solely by the appearance of its compressor wheel: the geometry of the components and how they work together determine its performance.

MFS compressor wheel: standard or Performance?

MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This technology describes its manufacturing process. On this product, the wheel is made from forged aluminium and features a high-flow configuration suited to the selected stage.

A standard MFS wheel can retain a geometry equivalent to that of the original d. An MFS Performance wheel may have a different profile, blade height or diameter where these characteristics form part of the specification.

A standard MFS impeller can be just as shiny as an MFS impeller Performance. It is not its appearance that determines its performance, but its geometry and its ability to move more d’air. A higher airflow can contribute to power output with a suitably adapted engine set-up, though it does not in itself guarantee a specific result.

Why does the geometry of the blades influence the air flow rate d?

The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour and its ability to move air within certain operating ranges.

The result also depends on the compressor housing, the impeller and the turbine housing, the boost pressure and the engine management system. A larger impeller therefore does not automatically guarantee better performance and may alter the turbocharger’s response time.

Reliability and balancing of the hybrid turbo

The 360° bearing stop, documented across all three stages, helps to distribute the axial forces exerted on the rotating assembly. It does not, however, d’replace the need for proper lubrication or d’correct installation.

The assembly is balanced at high speed, up to 150,000 rpm on a Cimat VSR test bench. This process aims to limit vibrations and mechanical stresses on the rotor, without compensating for any faults d’installation, lubrication or the presence d’a foreign object.

Engine remapping and preparation

The operation dof a hybrid turbocharger may require adjustments to the engine mapping and boost pressure management. Depending on the level of preparation, the fuel injection, exhaust system, intake air cooling d, clutch or transmission must also be checked. The wastegate must be adjusted when the ECU is remapped. No power gain is automatic without appropriate engine configuration.

Turbo part numbers

OEM part numbers

28200-4B160
282004B160
28200-4B151
282004B151

Manufacturer’s part numbers

700273-0001
700273-0002
700273-1
700273-2

Compatible vehicles and applications

Hyundai

BUS — 77 to 80 hp
2.5 D — from 1996, end date unspecified
Engine code : unspecified
H100 — 77 hp
2.5 TD — from 1995, end date unspecified
Engine code : unspecified
Starex — 80 hp
2.5 TD — from 1998, end date unspecified
Engine code : unspecified
VAN LIGHT DUTY (Truck) — 77 to 80 hp
2.5 D — from 1996, end date unspecified
Engine code : unspecified

Additional technical specifications

Product type: Hybrid Turbo
Engine variants: 2.5 D and 2.5 TD
displacement: 2.5 l
Fuel: Diesel
Documented power outputs: 77 to 80 hp
Production periods: From 1995 onwards, depending on the application
Engine codes: Not specified

Installation advice

⚠️ WARNING — IMPORTANT BEFORE INSTALLATION

Before installation, identify and rectify the cause of the previous failure. Check the lubrication circuit, as well as the oil supply and return lines d.

Check that the pipes and the inlet are clean and free from foreign objects. Carry out the priming procedure in accordance with the applicable recommendations and follow the manufacturer’s instructions.

A lubrication fault that is not rectified may lead to the turbocharger failing again.

How to identify the correct turbo?

Check the part number marked on the original turbo dand compare it with the OEM and manufacturer part numbers in this data sheet. Also check the make, model, body style, engine type, power output at hp, production period and engine code where available.

An identical engine specification does not always guarantee compatibility, as there may be several different set-ups depending on the vehicle version.

⚠️ Check your turbo’s part numbers

Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this data sheet. An identical engine specification does not always guarantee compatibility.

If you are unsure about your fitment, please contact us with the full part number taken from your turbocharger.
