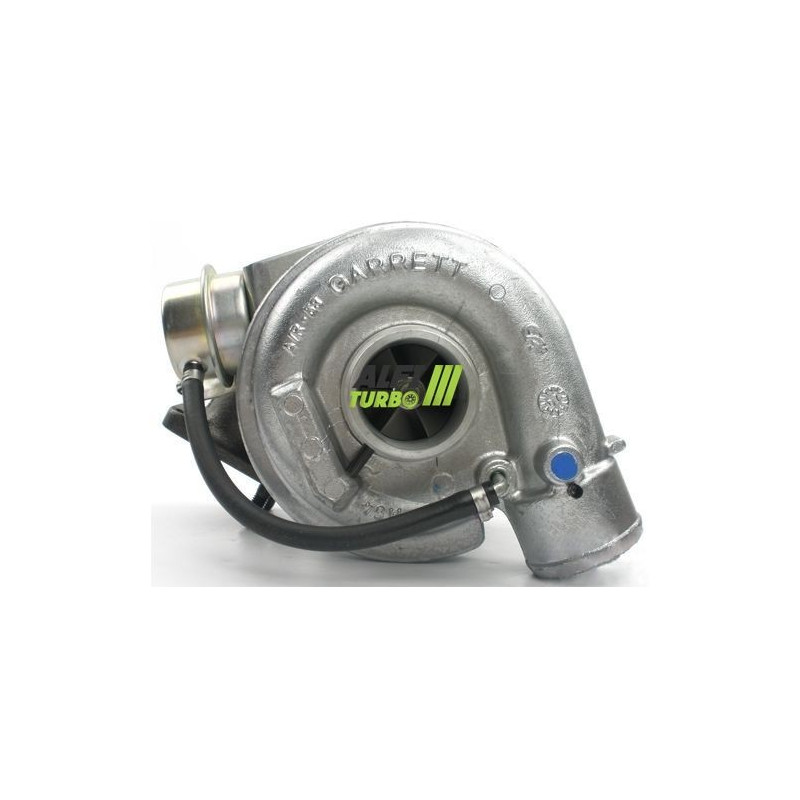

This hybrid turbo, designed for 2.4 JTD engines, features d a tuning programme focused on optimising the d air flow. Depending on the package selected, it is fitted with a high-flow MFS compressor wheel, a 360° bearing stop and, for certain versions, a reprofiled d intake housing.
Documented applications include the Alfa Romeo 156 and 166, as well as the Lancia Kappa in 2.4 JTD versions from 1997 onwards.
This modification primarily affects the compressor impeller in order d to adjust the compression capacity and the d air flow. The final result depends on the engine’s configuration and tuning.
The oversized impeller is accompanied by a reprofiling of the d intake housing d. This combination aims to adapt the airflow to the new geometry, without prejudging the engine’s final power output.
The documented specifications for for this variant include a oversized impeller and a d intake housing that has been re-profiled. No other mechanical differences are specified in the available data.
A hybrid turbo is based on a turbocharger design adapted for to accommodate internal modifications. Depending on the modification, these may involve the compressor wheel, its dimensions, the geometry of the blades, the housings, the turbine wheel, the thrust bearing or the balancing.
The aim is d to adapt the compression capacity and air flow rate d to the requirements of the tuning. A hybrid turbo is therefore not defined solely by the appearance of its compressor wheel, but by the coherence of the mechanical assembly as a whole.
MFS stands for ‘Milled From Solid’, meaning a wheel machined from a solid block. This manufacturing process alone does not guarantee an increase in air flow rate d. A standard MFS wheel may retain a geometry equivalent to that d of the original.
An MFS impeller Performance can be given a geometry tailored to the tuning objective. Depending on its design, this may involve the profile, height or width of the blades, their arrangement or the impeller’s diameter.
A standard MFS impeller can be just as effective as a custom- Performance d MFS impeller. It is not its appearance that determines its performance, but its geometry and its ability to move more d'air. A higher airflow rate can contribute to power output with the appropriate engine tuning, though it does not in itself guarantee a performance gain.
The compressor impeller draws in and then compresses the air sent to the engine. Its diameter, profile, height, width and the arrangement of its blades influence its aerodynamic behaviour. A suitable geometry can move more d air under certain operating conditions.
The result also depends on the compressor housing, the impeller and the turbine housing, the boost pressure and the engine management system. A larger impeller does not automatically guarantee better performance and may alter the response time or the range d of optimal operation.
The 360° bearing stop present on all three stages helps to distribute the axial forces exerted on the rotating assembly. It does not replace d'proper lubrication or d'correct installation.
Every documented modification undergoes high-speed balancing at 150,000 revs/min on a Cimat VSR test bench. This process aims to minimise vibrations and mechanical stresses on the rotor, but does not protect the turbocharger against insufficient lubrication, foreign objects or incorrect installation.
An adjustment to the engine management system may be necessary for to make the most of the hybrid turbo’s characteristics. The mapping, boost pressure, fuel delivery, air cooling d'intake, exhaust and transmission must be checked according to the level of tuning.
The wastegate must be adjusted when remapping the ECU. Fitting d a hybrid turbo does not automatically guarantee a power gain without appropriate mechanical and electronic configuration.
⚠️ WARNING — IMPORTANT BEFORE INSTALLATION
Identify and rectify the cause of the previous fault. Check the lubrication circuit, as well as the oil supply and return d.
Check that the pipes and the inlet are clean and free from foreign objects. Carry out the priming procedure in accordance with the applicable recommendations and follow the manufacturer’s instructions.
A lubrication fault that is not rectified may lead to further turbocharger failure.
Check the part number marked on the turbo d the original part number, OEM and manufacturer part numbers, as well as the make, model, engine type, power output, installation period and engine code. An identical engine may be fitted with several different turbo set-ups.
⚠️ Check your turbo’s part numbers
Before ordering, compare the part number marked on your original turbo d with the part numbers listed in this specification sheet. An identical engine specification does not always guarantee compatibility.
If in doubt, contact our team with the part number found on your original turbo d.
Reference: joints
Brand: ALFI TURBO ///
for Complete Gasket Set – for fitting your turbo.
ALFI TURBO specialises in the sale of turbochargers for for cars, commercial vehicles, heavy goods vehicles, construction machinery, agricultural machinery and boats: new turbochargers, remanufactured units, hybrid turbochargers, Cartridge and turbocharger spare parts. Over 20,000 items are available.
The turbocharger plays a vital role in the operation and performance d of a turbocharged engine. When a turbocharger needs replacing, it is important d to identify the exact part number before ordering.
ALFI TURBO supplies turbochargers for for a wide range of makes and engine types: cars, commercial vehicles, heavy goods vehicles, construction machinery, tractors and agricultural machinery, as well as various marine applications.
You can search for your turbo based on the vehicle or application, engine type, engine code, or directly using d an OEM or manufacturer part number found on your old turbocharger.
Browse our range of new turbochargers for for diesel and petrol engines. ALFI TURBO has over 5,500 new turbochargers in stock for covering a wide range of makes, engine types and turbocharger part numbers.
View new turbochargers →A standard exchange turbo allows you to replace a turbocharger whilst returning the old part where a deposit is required. Our catalogue includes numerous part numbers for from various makes and engine types.
View standard exchange turbochargers →Hybrid turbos are designed for set-ups requiring greater air flow d and higher performance potential than a standard set-up. Specifications depend on the turbo, its tuning and the engine configuration.
View hybrid turbos →The turbo Cartridge, also known as the central turbo cartridge, comprises the main rotating components of the turbocharger. ALFI TURBO has over 6,000 Cartridge for turbo part numbers.
View turbo Cartridge →Our catalogue covers a wide range of d applications fitted with d a turbocharged engine.
A single engine type may have been fitted with several different turbochargers depending on theYear, power output, engine version or technical evolution.. The application alone is therefore not always sufficient for to accurately identify the correct turbo.
Before ordering, note down the part numbers shown on the identification plate d of your old turbocharger. This may be d an OEM part number or d a part number from the turbo manufacturer.
Compare these part numbers with those listed on our product pages.. If in doubt, our team can help you verify the part number you are looking for before you place your order.
A loss of power, an unusual whistling noise, oil consumption d, abnormal smoke or poor engine performance may be linked to a turbocharger fault.
However, a fault that appears to be turbo-related may also stem d from a lubrication issue, d from contaminated oil, d from a foreign object, from the intake or exhaust systems, or d from another engine peripheral component.
It is therefore important to investigate the cause of the fault before fitting a new turbo or a new Cartridge.
Since 2012, ALFI TURBO has been assisting private individuals and professionals in identifying and replacing turbochargers.
A turbocharger failure may be the result d of another engine problem. Before fitting d a new turbo or Cartridge, identify and rectify the cause of the original fault to d avoid d damaging the new part.
