Hybrid Cartridge Turbo 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001,

  • Online only
Hybrid

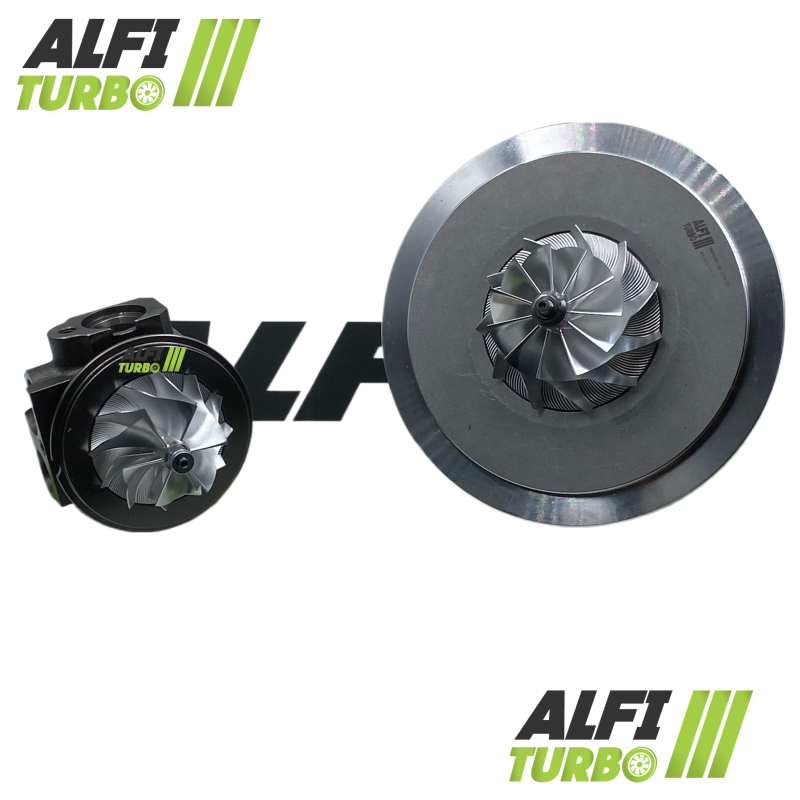

Turbo Cartridge Hybrid 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001
  • Hybrid Cartridge Turbo 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001,
  • Turbo Cartridge Hybrid 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001
  • Turbo Cartridge Hybrid 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001
  • Turbo Cartridge Hybrid 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001
  • Turbo Cartridge Hybrid 1.6 TDI 75 90 102 105 hp, 03L253016TX, 03L253016T, 03L253016TV, 775517-0001
HYB-010-430

Year 2009 - 2020

Power 75, 90 102 105 hp

displacement 1.6 TDI

Engine code CAYC CAYB CAYD CAYE

Gasket kit
Preparation course
Screws and bolts
€189.00 VAT included

157.5 tax excl.

Quantity
Delivery 3-30 working days

Description

Hybrid Cartridge Turbo plug & play (installation without modification)



Stage 1



MFS 31 large flow compressor wheels.10/44.00mm , 6+6 Performance D170

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench



Stage 2

MFS compressor wheel large oversized flow 36.40/49.00mm, 6+6, Performance D200

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench



Stage 2+



MFS compressor wheel* large oversized flow 38.40/52.00mm , 6+6 , Performance D240

Re-profiled housing to accommodate new oversized wheel

360° thrust bearing

High-speed balancing (150,000 RPM) on Cimat VSR bench

----------

To achieve this level of power, you also need to adjust your injection, exhaust, cooling and engine calculator systems. The adjustment of the VNT shall be made during the installation and retrieval of the calculator.

----------

OEM Reference

03L253016TX, 03L253016T, 03L253016TV

Manufacturer reference

775517-0001, 775517-0002, 775517-5001S, 775517-5002S

Compatible vehicle

AUDI A3 (8P1) PC 2009-05 2012-08 DIESEL CAYB 090

AUDI A3 (8P1) PC 2009-05 2012-08 DIESEL CAYC 105

AUDI A3 Sportback (8PA) PC 2009-05 2013-03 DIESEL CAYB 090

AUDI A3 Sportback (8PA) PC 2009-05 2013-03 DIESEL CAYC 105

AUDI A3 Convertible (8P7) PC 2009-05 2013-05 DIESEL CAYC 105

SEAT ALTEA (5P1) PC 2009-10 2015-07 DIESEL CAYC 105

SEAT ALTEA (5P1) PC 2010-11 2015-07 DIESEL CAYB 090

SEAT ALTEA XL (5P5, 5P8) PC 2009-10 2015-07 DIESEL CAYC 105

SEAT ALTEA XL (5P5, 5P8) PC 2010-11 2015-07 DIESEL CAYB 090

SEAT LEON (1P1) PC 2010-02 2012-12 DIESEL CAYC 105

SEAT LEON (1P1) PC 2010-11 2012-12 DIESEL CAYB 090

Skoda OCTAVIA II (1Z3) PC 2009-06 2013-04 DIESEL CAYC 105

Skoda OCTAVIA II Combi (1Z5) PC 2009-06 2013-04 DIESEL CAYC 105

Skoda OCTAVIA II Combi (1Z5) PC 2009-06 2013-02 DIESEL CAYC 105

Skoda Superb II (3T4) PC 2010-09 2015-05 DIESEL CAYC 105

Skoda Superb II Estate (3T5) PC 2010-09 2015-05 DIESEL CAYC 105

Skoda YETI (5L) PC 2010-11 2015-05 DIESEL CAYC 105

VW Beetle (5C1, 5C2) PC 2011-10 2016-07 DIESEL CAYC 105

VW Beetle Convertible (5C7, 5C8) PC 2011-12 2016-07 DIESEL CAYC 105

VW CADDY ALLTRACK Box Body/MPV (SAA) LCV 2015-05 2017-11 DIESEL CAYE 075

VW CADDY ALLTRACK Box Body/MPV (SAA) LCV 2015-05 DIESEL CAYD 102

VW CADDY ALLTRACK MPV (SAB) PC 2015-05 2017-11 DIESEL CAYE 075

VW CADDY ALLTRACK MPV (SAB) PC 2015-05 DIESEL CAYD 102

VW CADDY IV Box (SAA, SAH) LCV 2015-05 2017-11 DIESEL CAYE 075

VW CADDY IV Box Body/MPV (SAA, SAH) LCV 2015-05 2020-09 DIESEL CAYD 102

VW CADDY IV Estate (SAB, SAJ) PC 2015-05 2017-11 DIESEL CAYE 075

VW CADDY IV MPV (SAB, SAJ) PC 2015-05 2020-09 DIESEL CAYD 102

VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2 LCV 2010-08 2015-05 DIESEL CAYE 075

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) PC 2010-08 2015-05 DIESEL CAYE 075

VW CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) PC 2010-08 2015-05 DIESEL CAYD 102

VW CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2 LCV 2010-08 2015-05 DIESEL CAYD 102

VW Golf VAN VI Variant (AJ5) LCV 2009-07 2014-05 DIESEL CAYC 105

VW Golf VI Van (5K1_) LCV 2009-05 2012-11 DIESEL CAYC 105

VW Golf MORE Van (521) LCV 2009-02 2014-08 DIESEL CAYB 090

VW Golf VAN VI Variant (AJ5) LCV 2009-12 2012-10 DIESEL CAYB 090

VW Golf MORE Van (521) LCV 2009-02 2014-08 DIESEL CAYC 105

VW Golf MORE V (5M1, 521) PC 2009-03 2013-12 DIESEL CAYC 105

VW Golf VI (5K1) PC 2009-02 2012-11 DIESEL CAYB 090

VW Golf VI Van (5K1_) LCV 2009-02 2012-11 DIESEL CAYB 090

VW Golf VI (5K1) PC 2009-02 2012-11 DIESEL CAYC 105

VW Golf VI Variant (AJ5) PC 2009-07 2013-07 DIESEL CAYC 105

VW Golf VI Variant (AJ5) PC 2009-12 2013-07 DIESEL CAYB 090

VW Golf VI Convertible (517) PC 2011-03 2016-05 DIESEL CAYC 105

VW Golf MORE V (5M1, 521) PC 2009-02 2013-12 DIESEL CAYB 090

VW JETTA III (1K2) PC 2009-12 2010-10 DIESEL CAYB 090

VW JETTA III (1K2) PC 2009-06 2010-10 DIESEL CAYC 105

VW JETTA IV (162, 163, AV3, AV2) PC 2010-04 2015-07 DIESEL CAYC 105

VW PASSAT B6 (3C2) PC 2009-08 2010-07 DIESEL CAYC 105

VW PASSAT B7 Estate Van (365) LCV 2010-08 2014-12 DIESEL CAYC 105

VW PASSAT B7 (362) PC 2010-08 2014-12 DIESEL CAYC 105

VW PASSAT B6 Variant (3C5) PC 2009-08 2010-11 DIESEL CAYC 105

VW PASSAT B7 Variant (365) PC 2010-08 2014-12 DIESEL CAYC 105

VW TOURAN (1T3) PC 2010-05 2015-05 DIESEL CAYB 090

VW TOURAN (1T3) PC 2010-05 2015-05 DIESEL CAYC 105

VW TOURAN VAN (1T3) LCV 2010-05 2015-05 DIESEL CAYB 090

VW TOURAN VAN (1T3) LCV 2010-05 2015-05 DIESEL CAYC 105

Product Details
HYB-010-430
0
Hybrid
Attachments
Download
Installation instructions and pr

Please read carefully

Download (5.66MB)
