År 2004 - 2018
Effekt 170 180 200 210 211
Slagvolumen 2.0 TFSI
Motorkode CPSA CCZC CCTA CCZA CESA BPY BWA CETA CCZB AXX CAWB CBFA

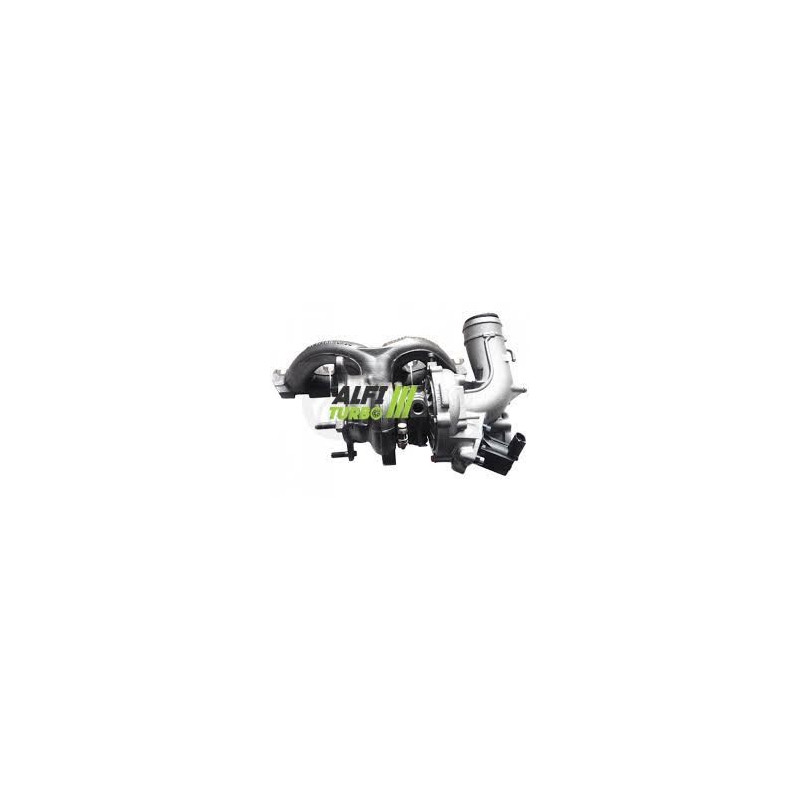

Hybridturbo plug & Play (montering uden ændringer, renoveret base)
Stage 1
MFS højflow kompressorhjul 41.00/50.96mm, 6+6 Performance, D310
360° aksialleje
Højhastighedsafbalancering (150.000 RPM) på Cimat VSR-bænk.
Stage 2
Overdimensioneret højflow MFS kompressorhjul, 42.00/56.08mm, 11+0 Performance D350
Omprofilieret kompressorhus for at rumme et nyt overdimensioneret hjul
360° aksialleje
Højhastighedsafbalancering (150.000 RPM) på Cimat VSR-bænk.
Stage 2+
Overdimensioneret højflow MFS kompressorhjul, 50.00/62.50mm, 10+0 Performance, D410
Omprofilieret kompressorhus for at rumme et nyt overdimensioneret hjul
360° aksialleje
Højhastighedsafbalancering (150.000 RPM) på Cimat VSR-bænk.
----------
Til for at opnå maksimal effekt skal du også justere dine indsprøjtnings-, udstødnings-, køle- og ECU-systemer. Wastegaten skal justeres, når ECU'en er monteret og remappet.
----------
OEM-referencenummer
06J145713K, 06J145713L, 06J145713T, 06J145701T, 06J145701N, 06J145702L, 06J145702K, 06J145722B, 06J145713KX, 06J145713LX, 06J145713TX, 06J145701TX, 06J145701NX, 06J145702LX, 06J145702KX, 06J145722BX,
Producentens reference
53039700290, 53039880290, 9VA02, JH5, JH5 IT, 9VA13, 9VA02, F51CAF-SQ001B, TW9P13NR5CW20,
Køretøjsanvendelse
AUDI Q3 (8UB, 8UG) PC 2011-06 2015-04 GASOLINE CPSA 211
AUDI Q3 (8UB, 8UG) PC 2011-06 2015-04 GASOLINE CCZC 170
AUDI TT (8J3) PC 2008-06 2010-06 GASOLINE CCTA, CCZA 200
AUDI TT (8J3) PC 2010-05 2014-06 GASOLINE CESA 211
AUDI TT (8J3) PC 2010-05 2014-06 GASOLINE CESA, CETA 211
AUDI TT Roadster (8J9) PC 2007-03 2010-06 GASOLINE BPY, BWA, CCTA 200
AUDI TT Roadster (8J9) PC 2008-06 2010-06 GASOLINE CCTA, CCZA 200
AUDI TT Roadster (8J9) PC 2010-05 2014-06 GASOLINE CESA 211
AUDI TT Roadster (8J9) PC 2010-05 2014-06 GASOLINE CESA, CETA 211
SEAT ALHAMBRA (710, 711) PC 2010-11 2012-05 GASOLINE CCZA 200
SEAT ALTEA XL (5P5, 5P8) PC 2009-05 2015-07 GASOLINE CCZB 211
SEAT LEON (1P1) PC 2009-06 2012-12 GASOLINE CCZB 211
SKODA SUPERB II (3T4) PC 2010-05 2015-05 GASOLINE CCZA 200
SKODA SUPERB II stationcar (3T5) PC 2010-05 2015-05 GASOLINE CCZA 200
VW BILLE (5C1, 5C2) PC 2011-04 2016-07 GASOLINE CBFA (04.11-07.16), CCTA (04.1 200
VW BEETLE Cabriolet (5C7, 5C8) PC 2011-12 2016-07 GASOLINE CBFA, CCTA, CCZA 200
VW EOS (1F7, 1F8) PC 2006-03 2015-08 GASOLINE BPY, BWA, CAWB, CBFA, CCTA, CC 200
VW EOS (1F7, 1F8) PC 2009-11 2015-08 GASOLINE CCZB 210
VW GOLF V (1K1) PC 2004-10 2009-02 GASOLINE AXX, BPY, BWA, CAWB, CBFA, CCT 200
VW GOLF VI (5K1) PC 2009-06 2013-11 GASOLINE CBFA, CCTA, CCZA 200
VW GOLF VI Varevogn (5K1_) LCV 2009-02 2012-11 GASOLINE CCZB 211
VW GOLF VI (5K1) PC 2009-04 2012-11 GASOLINE CCZB 210
VW GOLF VI Cabriolet (517) PC 2012-05 2016-05 GASOLINE CCZB 211
VW GOLF VI Variant (AJ5) PC 2009-07 2013-07 GASOLINE CCZA 200
VW JETTA III (1K2) PC 2005-10 2010-10 GASOLINE AXX, BPY, BWA, CAWB, CBFA, CCT 200
VW JETTA IV (162, 163, AV3, AV2) PC 2010-12 2014-07 GASOLINE CBFA, CCTA, CCZA 200
VW PASSAT B6 (3C2) PC 2005-07 2010-07 GASOLINE AXX, BPY, BWA, CAWB, CBFA, CCT 200
VW PASSAT B6 Variant (3C5) PC 2005-08 2010-11 GASOLINE AXX, BPY, BWA, CAWB, CBFA, CCT 200
VW PASSAT B7 (362) PC 2010-11 2014-12 GASOLINE CCZB 210
VW PASSAT CC B6 (357) PC 2010-11 2012-01 GASOLINE CCZB 211
VW PASSAT CC B6 (357) PC 2008-06 2012-01 GASOLINE CAWB, CBFA, CCTA, CCZA 200
VW PASSAT ALLTRACK B7 (365) PC 2012-01 2014-12 GASOLINE CCZB 210
VW PASSAT B7 Variant (365) PC 2010-11 2015-12 GASOLINE CCZB 210
VW CC B7 (358) PC 2011-11 2016-12 GASOLINE CCZB 210
VW SCIROCCO III (137, 138) PC 2009-11 2017-11 GASOLINE CCZB 210
VW SCIROCCO III (137, 138) PC 2008-05 2009-11 GASOLINE CAWB 200
VW SHARAN VAN (7N1, 7N2) LCV 2010-12 2015-11 GASOLINE CCZA 200
VW SHARAN (7N1, 7N2) PC 2010-12 2015-11 GASOLINE CCZA 200
VW TIGUAN (5N_) PC 2011-05 2018-07 GASOLINE CCZD 180
VW TIGUAN VAN (5N_) LCV 2011-05 2018-07 GASOLINE CCZB 211
VW TIGUAN (5N_) PC 2007-09 2018-07 GASOLINE CAWA, CCTB, CCZC 170
VW TIGUAN (5N_) PC 2007-09 2018-07 GASOLINE CAWB, CCTA, CCZA 200
VW TIGUAN VAN (5N_) LCV 2009-11 2011-05 GASOLINE CCZC 170
VW TIGUAN VAN (5N_) LCV 2009-11 2011-05 GASOLINE CCZA 200
VW TIGUAN (5N_) PC 2011-05 2018-07 GASOLINE CCZB 211
